Description

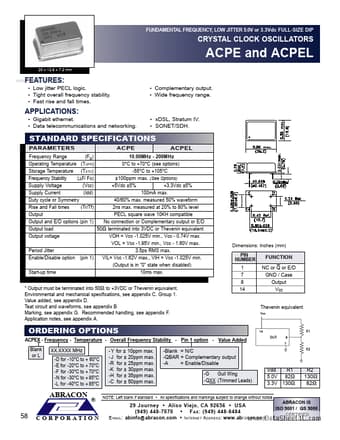

FUNDAMENTAL FREQUENCY, LOW JITTER 5.0V or 3.3Vdc FULL-SIZE DIP CRYSTAL CLOCK OSCILLATORS ACPE and ACPEL 20 x 12.6 x 7.2 mm www.datasheet4u.com FE.
Features
* Low jitter PECL logic.
* Tight overall frequency stability.
* Fast rise and fall times.
* Gigabit ethernet.
* Data telecommunications and networking.
* Complementary output.
Applications
* xDSL, Stratum IV.
* SONET/SDH. STANDARD SPECIFICATIONS
Frequency Range 3.5 MHz - 25 MHz PARAMETERS ACPE ACPEL STAMode NDARD SPECIF ICATIO NS Operation Fundamental, AT Frequency Range (Fo) 10.00MHz - 200MHz Operating Temperature -10°C to + 60° C (See Options) 0°C to +70°C (see op
