ACP2728 Datasheet - Acpsemi

38V Boost DC/DC WLED Driver

ACP2728 Features

* integrated open protection that disables the ACP2728 to prevent the output voltage from exceeding the absolute maximum voltage ratings during open LED Conditions. ACP2728 38V Boost DC/DC WLED Driver ◤FEATURES

* Input Voltage Range: 2.7V to 5.5V

* 200mV Reference Voltage

* Integrated 2.7

ACP2728 General Description

The ACP2728 is a boost DC/DC converter that drives WLEDS with a 40V voltage rated switch MOSFET, thus it can drive single or parallel WLED strings for small to large size panel back-lighting. The default white LED current is set with the external sensor resistor, and the feedback voltage is regulate.

ACP2728 Datasheet (314.10 KB)

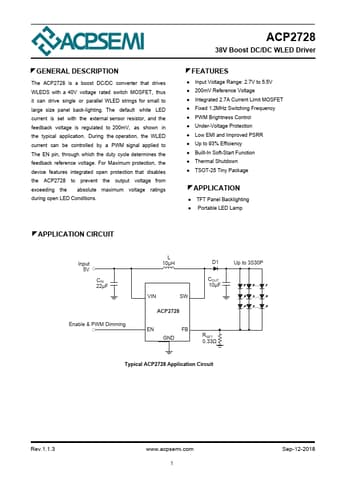

ACP2728 Datasheet Preview — Preview of ACP2728 PDF

Datasheet Details

Part number:

ACP2728

Manufacturer:

Acpsemi

File Size:

314.10 KB

Description:

38v boost dc/dc wled driver.
