ACP100E

1W Ultra-Miniature DC/DC Converters

ACP100E Features

* 1W Output Power

* Miniature Low Profile Case

* DCP01 Series Replacement

* 1,500 VDC Isolation

* Short Circuit Protected

* >3.5 MHour MTBF

* SMT Ver Available (LCP100E)

* LOW, LOW COST!! Input Parameter Input Voltage Range Input Filte

ACP100E General Description

+Vin -Vin -Vout +Vout NC NC NC NC = No Connection Notes: MicroPower Direct We Power Your Success - For Less! 292 Page Street Ste D Stoughton, MA 02072

*

* All dimensions are typical in inches (mm)

* Tolerance x.xx = ±0.01 (±0.25)

* Pin 1 is marked by a “dot” or in.

ACP100E Datasheet (342.00 KB)

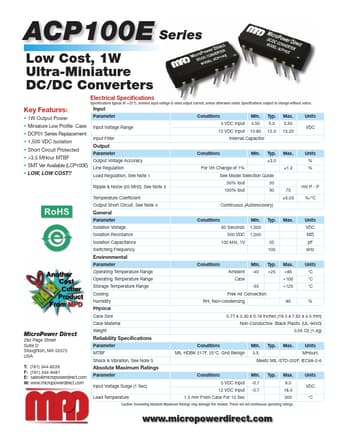

Preview of ACP100E PDF

Datasheet Details

Part number:

ACP100E

Manufacturer:

MicroPower Direct

File Size:

342.00 KB

Description:

1w ultra-miniature dc/dc converters.
ACP100E Series Low Cost, 1W Ultra-Miniature DC/DC Converters Electrical Specifications Specifications typical @ +25°C, nominal input voltage & rated out.
