ACPF-7003

High Rx and Image Rejection Tx Filter

ACPF-7003 Features

* High rejection from a single filter with no switches required

* True split band replacement

* Passband: 1850-1910 MHz

* 35 dB min Attenuation, 1930-1990 MHz

* 2.5 dB Typical Insertion Loss

* 25dB image rejection at 1830 MHz

* Spa

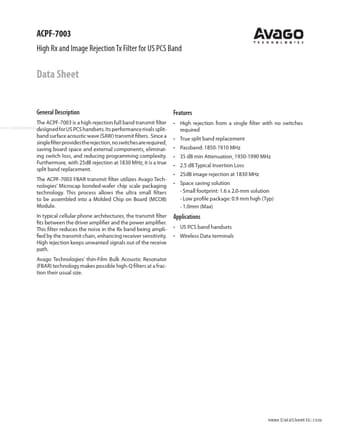

ACPF-7003 Datasheet (653.43 KB)

Preview of ACPF-7003 PDF

Datasheet Details

Part number:

ACPF-7003

Manufacturer:

AVAGO

File Size:

653.43 KB

Description:

High rx and image rejection tx filter.
