ACPM-7311-TR1 Datasheet - AVAGO

ACPM-7311-TR1, Power Amplifier Module

ACPM-7311-TR1 UMTS800 4x4 Power Amplifier (824-849MHz) Data Sheet .
The ACPM-7311, a Wide-band Code Division Multiple Access(WCDMA) Power Amplifier (PA), is a fully matched 10-pin surface mount module developed for WCD.

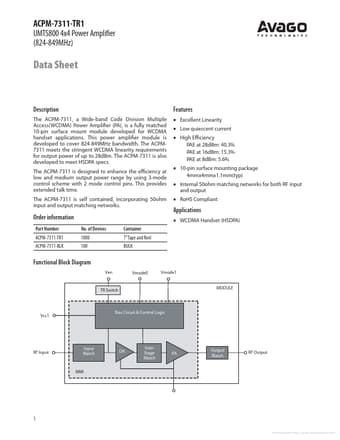

datasheet Preview Page 1 from Datasheet4u.com

ACPM-7311-TR1_AVAGO.pdf

ACPM-7311-TR1 Datasheet Preview — Preview of ACPM-7311-TR1 PDF

Datasheet Details

Part number:

ACPM-7311-TR1

Manufacturer:

AVAGO

File Size:

1.01 MB

Description:

Power Amplifier Module

Features

* Excellent Linearity
* Low quiescent current
* High Efficiency PAE at 28dBm: 40.3% PAE at 16dBm: 15.3% PAE at 8dBm: 5.6%
* 10-pin surface mounting package 4mmx4mmx1.1mm(typ)
* Internal 50ohm matching networks for both RF input and output

Applications

* This power amplifier module is developed to cover 824-849MHz bandwidth. The ACPM7311 meets the stringent WCDMA linearity requirements for output power of up to 28dBm. The ACPM-7311 is also developed to meet HSDPA specs. The ACPM-7311 is designed to enhance the efficiency at low and medium output po
