ACPM7813, ACPM-7813_Hewlett, CDMA/AMPS Power Amplifier Module

www.DataSheet4U.com Agilent ACPM-7813 CDMA/AMPS Power Amplifier Module Data Sheet .
The ACPM-7813 is a fully matched CDMA Power amplifier module.

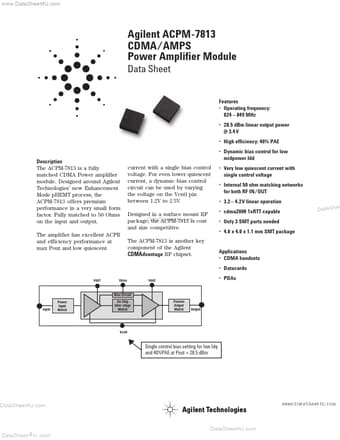

datasheet Preview Page 1 from Datasheet4u.com

ACPM-7813_Hewlett-Packard.pdf

ACPM7813 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACPM7813, ACPM-7813_Hewlett. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ACPM7813, ACPM-7813_Hewlett

Manufacturer:

Hewlett-Packard

File Size:

462.42 KB

Description:

CDMA/AMPS Power Amplifier Module

Note:

This datasheet PDF includes multiple part numbers: ACPM7813, ACPM-7813_Hewlett.
Please refer to the document for exact specifications by model.

Features

* Operating frequency: 824
* 849 MHz
* 28.5 dBm linear output power @ 3.4 V
* High efficiency: 40% PAE
* Dynamic bias control for low midpower Idd current with a single bias control voltage. For even lower quiescent current, a dynamic bias control circuit can

Applications

* CDMA handsets
* Datacards Vdd1 Vbias Vdd2
* PDAs Bias Circuit Power Input Match On Chip Inter-stage Match Passive Output Match Input Output Vcntl Single control bias setting for low Idq and 40%PAE at Pout = 28.5 dBm DataSheet4U. com DataSheet4U. com DataSheet 4 U .
