ACPM-5008-TR1 Datasheet - AVAGO

ACPM-5008-TR1, Power Amplifier Module

ACPM-5008-TR1 UMTS Band8 (880-915MHz) 3x3mm Power Amplifier Module Data Sheet .
The ACPM-5008-TR1 is a fully matched 10-pin surface mount module developed to support multimode applications including UMTS Band8.

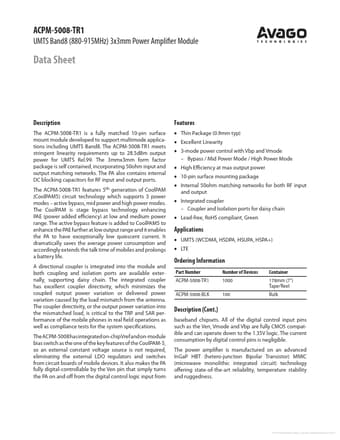

datasheet Preview Page 1 from Datasheet4u.com

ACPM-5008-TR1_AVAGO.pdf

ACPM-5008-TR1 Datasheet Preview — Preview of ACPM-5008-TR1 PDF

Datasheet Details

Part number:

ACPM-5008-TR1

Manufacturer:

AVAGO

File Size:

338.65 KB

Description:

Power Amplifier Module

Features

* 5th generation of CoolPAM (CoolPAM5) circuit technology which supports 3 power modes
* active bypass, mid power and high power modes. The CoolPAM is stage bypass technology enhancing PAE (power added efficiency) at low and medium power range. The active bypass feature is added to CoolPAM5 to

Applications

* including UMTS Band8. The ACPM-5008-TR1 meets stringent linearity requirements up to 28.5dBm output power for UMTS Rel.99. The 3mmx3mm form factor package is self contained, incorporating 50ohm input and output matching networks. The PA also contains internal DC blocking capacitors for RF input and
