ACPM-5007

Power Amplifier Module

ACPM-5007 Features

* 5th generation of CoolPAM circuit technology which supports 3 power modes

* bypass, mid and high power modes. The CoolPAM is stage bypass technology enhancing PAE (power added efficiency) at low and medium power range. Active bypass feature is added to 5th generation to enhance PAE further a

ACPM-5007 General Description

The ACPM-5007 is a fully matched 10-pin surface mount module developed for LTE Band7. This power amplifier module operates in the 2500-2570 MHz bandwidth. The ACPM-5007 meets stringent UMTS (Rel 99) linearity requirements up to 28.5 dBm output power and the LTE (MPR = 0 dB) to 27.5 dBm. The 3 x 3 mm.

ACPM-5007 Datasheet (327.47 KB)

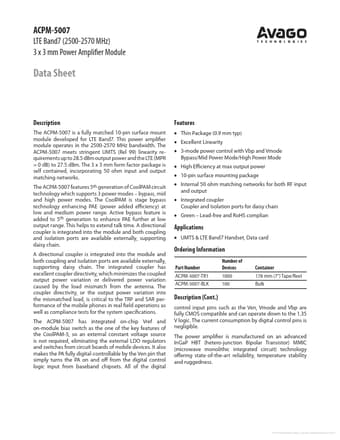

Preview of ACPM-5007 PDF

Datasheet Details

Part number:

ACPM-5007

Manufacturer:

AVAGO

File Size:

327.47 KB

Description:

Power amplifier module.
