AMMC-6222 - 7 to 21 GHz GaAs High Linearity Low Noise Amplifier

AMMC-6222 Description

AMMC-6222 7 to 21 GHz GaAs High Linearity Low Noise Amplifier Data Sheet .
Avago Technologies AMMC-6222 is an easy-to-use broadband, high gain, high linearity Low Noise Amplifier that operates from 7 GHz to 21GHz.

AMMC-6222 Features

* 2000μm x 800μm Die Size
* Single Positive Bias Supply
* Selectable Output Power / Linearity
* No Negative Gate Bias Specifications (Vdd = 4.0V, Idd = 120mA)
* RF Frequencies: 7 - 21 GHz
* High Output IP3: 29dBm
* High Small-Signal Gain

AMMC-6222 Applications

* Microwave Radio systems
* Satellite VSAT, DBS Up/Down Link
* LMDS & Pt-Pt mmW Long Haul
* Broadband Wireless Access (including 802.16 and 802.20 WiMax)
* WLL and MMDS loops
* Commercial grade military Note: 1. This MMIC uses depletion mode pHEM

📥 Download Datasheet

Preview of AMMC-6222 PDF

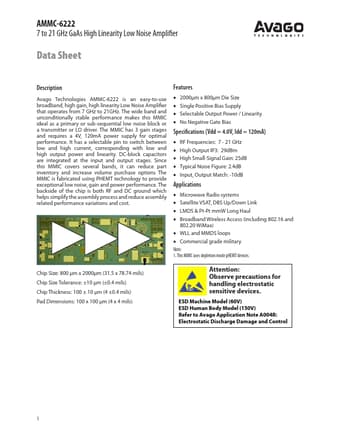

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMMC-6222
Manufacturer
AVAGO
File Size
1.37 MB
Datasheet
AMMC-6222-AVAGO.pdf
Description
7 to 21 GHz GaAs High Linearity Low Noise Amplifier
