AMMC-6120 Datasheet, Multiplier, Agilent

AMMC-6120 Features

  • Multiplier
  • Input frequency range: 4-10 GHz
  • Broad input power range: -3 to +6 dBm
  • Output power: +14 dBm (Pin = +2 dBm)
  • Fundamental Suppression of 25 dBc

PDF File Details

Part number:

AMMC-6120

Manufacturer:

Agilent

File Size:

123.37kb

Download:

📄 Datasheet

Description:

8-20 ghz output x2 active frequency multiplier. Agilent’s AMMC-6120 is an easyto-use x2 active frequency multiplier MMIC designed for commercial communication systems. Though capabl

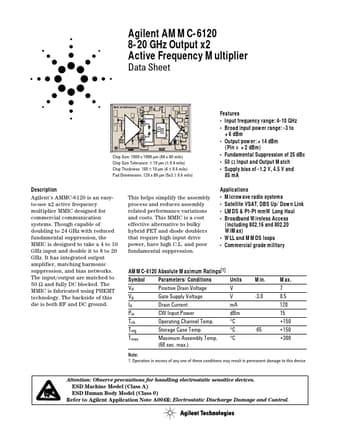

Datasheet Preview: AMMC-6120 📥 Download PDF (123.37kb)
Page 2 of AMMC-6120 Page 3 of AMMC-6120

AMMC-6120 Application

  • Applications
  • Microwave radio systems
  • Satellite VSAT, DBS Up/Down Link
  • LMDS & Pt-Pt mmW Long Haul
  • Broadband W
