AMMC-6140 - 20 - 40 GHz Output x2 Active Frequency Multiplier

AMMC-6140 Description

Agilent AMMC-6140 20 * 40 GHz Output x2 Active Frequency Multiplier Data Sheet .
Agilent’s AMMC-6140 is an Pad Dimensions: 120 x 80 µm (5x3 ± 0. Microwave radio systems. Satellite VSAT, DBS Up/Down Link.

AMMC-6140 Features

* Input frequency range: 10
* 20 GHz
* Broad input power range: -9 to +7 dBm
* Output power: -1 to 0 dBm (Pin = +4 dB)
* Fundamental suppression of 25 dBc
* 50Ω input and output match
* Supply bias of -1.2V, 4.5V and Chip Size: 1300 x 900

📥 Download Datasheet

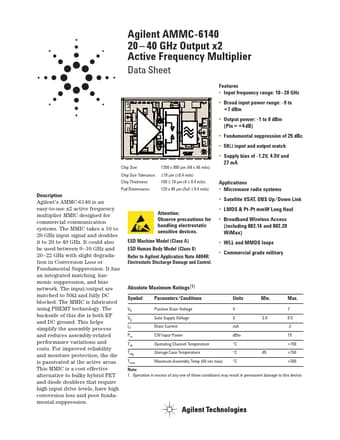

Preview of AMMC-6140 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMMC-6140
Manufacturer
Agilent
File Size
250.91 KB
Datasheet
AMMC-6140-Agilent.pdf
Description
20 - 40 GHz Output x2 Active Frequency Multiplier
