AMMC-6530 Datasheet, Mixer, Agilent

AMMC-6530 Features

• Mixer
• Broad Band Performance 5
    – 30 GHz
• Low Conversion Loss of 8 dB
• High Image Rejection of 15
    – 20 dB
• Good 3rd Order In

PDF File Details

Part number:

AMMC-6530

Manufacturer:

Agilent

File Size:

258.33kb

Download:

📄 Datasheet

Description:

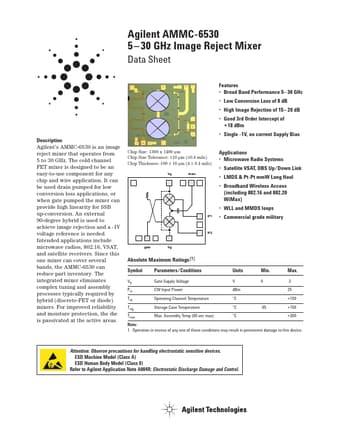

5-30 ghz image reject mixer. Agilent’s AMMC-6530 is an image reject mixer that operates from 5 to 30 GHz. The cold channel FET mixer is designed to be an easy-to-

AMMC-6530 Application

• Applications or when gate pumped the mixer can provide high linearity for SSB up-conversion. An external 90-degree hybrid is used to achieve image
