AMMC-6232 - 18 to 32 GHz GaAs High Linearity Low Noise Amplifier

AMMC-6232 Description

AMMC-6232 18 to 32 GHz GaAs High Linearity Low Noise Amplifier Data Sheet Chip Size: 800 μm x 2000μm (31.5 x 78.74 mils) Chip Size Tolerance: ±10 μm .
Avago Technologies AMMC-6232 is an easy-to-use broadband, high gain, high linearity Low Noise Amplifier that operates from 18 GHz to 32GHz.

AMMC-6232 Features

* 800μm x 2000μm Die Size
* Unconditionally Stable Specifications (Vdd = 4.0V, Idd = 135mA)
* RF Frequencies: 18 - 32 GHz
* High Output IP3: 29dBm
* High Small-Signal Gain: 27dB
* Typical Noise Figure: 2.8dB
* Input, Output Match: -10dB Appli

AMMC-6232 Applications

* Microwave Radio systems
* Satellite VSAT, DBS Up/Down Link
* LMDS & Pt-Pt mmW Long Haul
* Broadband Wireless Access (including 802.16 and 802.20 WiMax)
* WLL and MMDS loops Note: 1. This MMIC uses depletion mode pHEMT devices.  Absolute Maximum Ratings

📥 Download Datasheet

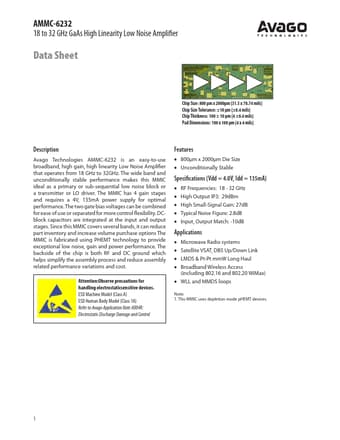

Preview of AMMC-6232 PDF
