AMMC-6545 Datasheet, Mixer, AVAGO

AMMC-6545 Features

  • Mixer
  • RF Frequency: 18-45GHz
  • LO Frequency: 9-24GHz
  • IF Frequency: DC-3GHz
  • Suitable for Up and Down Conversion
  • Diode Mixer Typical Perform

PDF File Details

Part number:

AMMC-6545

Manufacturer:

AVAGO

File Size:

300.89kb

Download:

📄 Datasheet

Description:

18 to 45 ghz sub-harmonic mixer. Avago’s AMMC-6545 is an easy-to-use broadband sub-harmonic mixer, with the LO injected at half the frequency of that required by a co

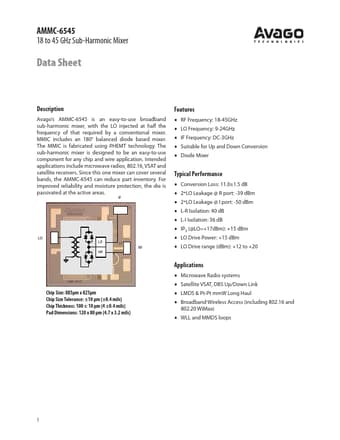

Datasheet Preview: AMMC-6545 📥 Download PDF (300.89kb)
Page 2 of AMMC-6545 Page 3 of AMMC-6545

AMMC-6545 Application

  • Applications include microwave radios, 802.16, VSAT and satellite receivers. Since this one mixer can cover several bands, the AMMC-6545 can reduce
