AM1030N

100V N-Channel MOSFET

AM1030N Features

* 3.0A, 100V, RDS(on) = 0.19Ω @VGS = 10 V Low gate charge ( typical 5.8 nC) Low Crss ( typical 10 pF) Fast switching Improved dv/dt capability ™ PIN ASSIGNMENT The package of AM1030N is€ SOT-223; the pin assignment is given by: VÛmw`R

* y Ñb ww w ot f o g . ec o h.c m 1/8 Axelite Confi

AM1030N General Description

These N-Channel enhancement mode power field effect transistors are produced using DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. Th.

AM1030N Datasheet (559.86 KB)

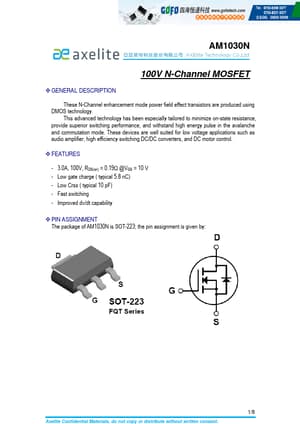

Preview of AM1030N PDF

Datasheet Details

Part number:

AM1030N

Manufacturer:

AXElite

File Size:

559.86 KB

Description:

100v n-channel mosfet.
