AM1037

3A Step-Down PWM Switch-Mode DC/DC Regulators

AM1037 Features

* :Continuous Output Current 3A Stable with Low ESR Output Ceramic Capacitors Thermal Shutdown Cycle-by-cycle over current protection Wide 5V to 16V operating input range Output Adjustable from 1.2V to 16V Available in 8 pin SO package High Frequency up to 400KHz Application Battery Charger Distribute

AM1037 General Description

The AM1037 is a step down swi tch mode converter with a built in internal power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault conditi.

AM1037 Datasheet (338.33 KB)

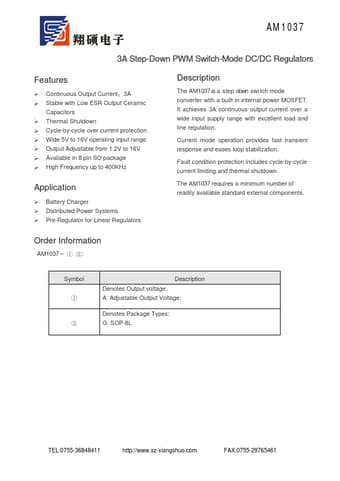

Preview of AM1037 PDF

Datasheet Details

Part number:

AM1037

Manufacturer:

XiangShuo

File Size:

338.33 KB

Description:

3a step-down pwm switch-mode dc/dc regulators.
