AX3130

PWM Control 2A Step-Down Converter

AXElite

AX3130 Features

* as low current consumption. Since this converter can accommodate an input voltage up to 23V, it is also suitable for the operation via an AC adapter. VÛm w`R

* yÑb€  FEATURES Input voltage 4.5V to 23V Output voltage VFB to VCC Duty ratio 0% to 100% PWM control Oscillation frequency 200K~1.3

AX3130 General Description

AX3130 consists of step-down switching regulator with PWM control. These devise include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AX3130 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is able.

AX3130 Datasheet (360.86 KB)

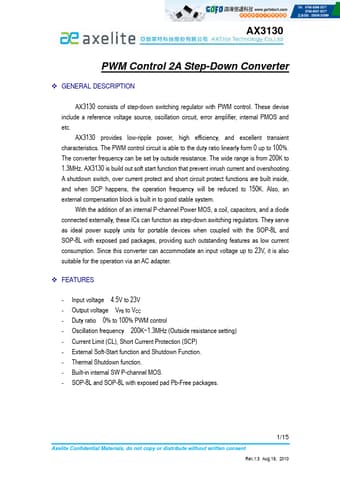

AX3130 Datasheet Preview — Preview of AX3130 PDF

Datasheet Details

Part number:

AX3130

Manufacturer:

AXElite

File Size:

360.86 KB

Description:

Pwm control 2a step-down converter.
