AX3001 Datasheet, regulator equivalent, Anxson

AX3001 Features

  • Regulator � � � � � � � � � � Up to 94% Efficiency Low voltage start-up:0.9V Shut-down current: < 1μA Input voltage:0.9V~4.4V Output voltage:2.5V~4.3V (Up to 5V with Schottky) Low switch on resis

PDF File Details

Part number:

AX3001

Manufacturer:

Anxson

File Size:

510.57kb

Download:

📄 Datasheet

Description:

Synchronous boost dc/dc regulator. The AX3001 is high efficiency synchronous, PWM step-up DC/DC converters optimized to provide a high efficient solution to medium powe

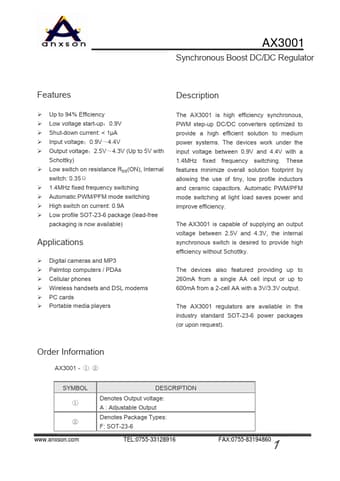

Datasheet Preview: AX3001 📥 Download PDF (510.57kb)
Page 2 of AX3001 Page 3 of AX3001

AX3001 Application

  • Applications � � � � � � Digital cameras and MP3 Palmtop computers / PDAs Cellular phones Wireless handsets and DSL modems PC cards Portable media p
