AX3006

3A PWM Buck DC/DC Converter

AXElite

AX3006 Features

* - Output voltage: 3.3V, 5V, 12V and adjustable output version. - Adjustable version output voltage range, 1.23V to 38.5V. - 150KHz fixed switching frequency. - Voltage mode non-synchronous PWM control. - Thermal-shutdown and current-limit protection. - ON/OFF shutdown control input. - Short Circuit

AX3006 General Description

The AX3006 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come into standby mode. The internal compensation makes.

AX3006 Datasheet (349.59 KB)

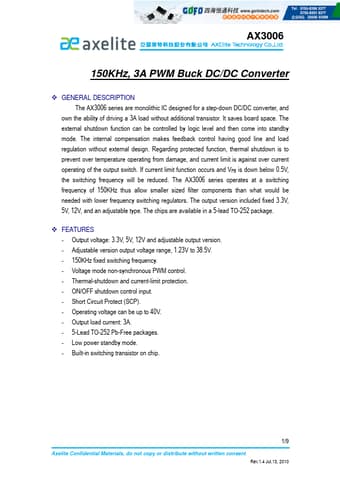

AX3006 Datasheet Preview — Preview of AX3006 PDF

Datasheet Details

Part number:

AX3006

Manufacturer:

AXElite

File Size:

349.59 KB

Description:

3a pwm buck dc/dc converter.
