AX3007A - 2A PWM Buck DC/DC Converter

AX3007A Description

AX3007A 85KHz, 2A PWM Buck DC/DC Converter  GENERAL .
The AX3007A series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 2A load without additional transistor.

AX3007A Features

* Output voltage: 3.3V, 5V, 12V and adjustable output version. Adjustable version output voltage range, 1.23V to 38.5V. 85KHz fixed switching frequency. Voltage mode non-synchronous PWM control. Thermal-shutdown and current-limit protection. ON/OFF shutdown control input. Short Circuit Protect (SCP).

📥 Download Datasheet

Preview of AX3007A PDF

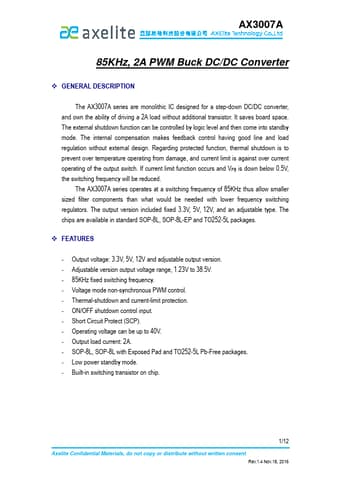

datasheet Preview Page 2 datasheet Preview Page 3
