AX3007 Datasheet - AXElite

AX3007 2A PWM Buck DC/DC Converter

The AX3007 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 2A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come into standby mode. The internal compensation makes.

AX3007 Features

* - Output voltage: 3.3V, 5V, 12V and adjustable output version1. - Adjustable version output voltage range, 1.23V to 38.5V. - 150KHz fixed switching frequency. - Voltage mode non-synchronous PWM control. - Thermal-shutdown and current-limit protection. - ON/OFF shutdown control input. - Short Circuit

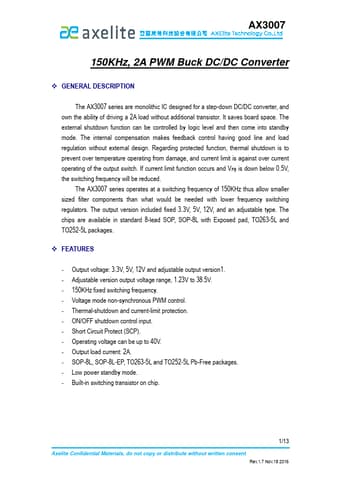

AX3007 Datasheet (1.35 MB)
