AX3005

3A PWM Buck DC/DC Converter

AXElite

AX3005 Features

* -

* yÑb€ R ` w VÛm5V, 12V and c Output voltage: 3.3V, adjustable om output version. . ch range, 1.23V to 38.5V. Adjustable version output voltage e t o f o g 150KHz fixed switching frequency. . w ww Voltage mode non-synchronous PWM control. Thermal-shutdown and current-limit protection. ON/

AX3005 General Description

The AX3005 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor. It saves board space. The external shutdown function can be controlled by logic level and then come into standby mode. The internal compensation makes.

AX3005 Datasheet (727.73 KB)

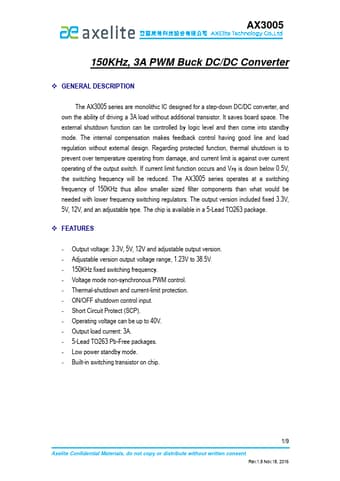

AX3005 Datasheet Preview — Preview of AX3005 PDF

Datasheet Details

Part number:

AX3005

Manufacturer:

AXElite

File Size:

727.73 KB

Description:

3a pwm buck dc/dc converter.
