AX5521, AX5520 20A Fully Integrated Synchronous Boost Converter

AX5521 Description

AX5520/1 20A Fully Integrated Synchronous Boost Converter  GENERAL .
The AX5520/AX5521 is a high efficiency fully integrated synchronous Boost converter with built-in main switch and synchronous switch.

AX5521 Features

* - AX5520: 2.7V to 18V Input Range 3V to 18V Output Voltage Integrated 18V Rating 9mΩ Main and Synchronous Power Switches with 20A Peak Current Capability - AX5521: 2.7V to 30V Input Range 3V to 30V Output Voltage Integrated 30V Rating 9mΩ Main and Synchronous Power Switches with 20A Peak Current Cap

AX5521 Applications

* The 2.7V to 18V(MT AX5520) or 30V(AX5521) input voltage range supports a wide range of battery and AC powered inputs. The 70µA no load quiescent current extends operating run time in battery-powered systems. The operating frequency can be externally set for a 50kHz to 1MHz range. The AX5520/ AX5521

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AX5521, AX5520. Please refer to the document for exact specifications by model.

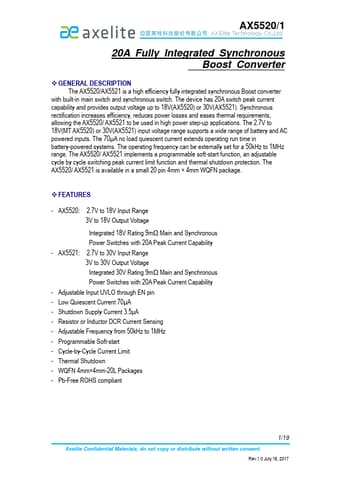

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX5521, AX5520
Manufacturer
AXElite
File Size
938.53 KB
Datasheet
AX5520-AXElite.pdf
Description
20A Fully Integrated Synchronous Boost Converter
Note
This datasheet PDF includes multiple part numbers: AX5521, AX5520.
Please refer to the document for exact specifications by model.
