AX5523

High Efficiency 1.2MHz 2A Step Up Converter

AX5523 Features

* automatic shifting to pulse frequency modulation mode at light loads. The AX5523 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The AX5523 is available in a small 6-pin SOT-23 package.  FEATURES Integrated 80mΩ

AX5523 General Description

The AX5523 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The AX5523 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extend.

AX5523 Datasheet (435.77 KB)

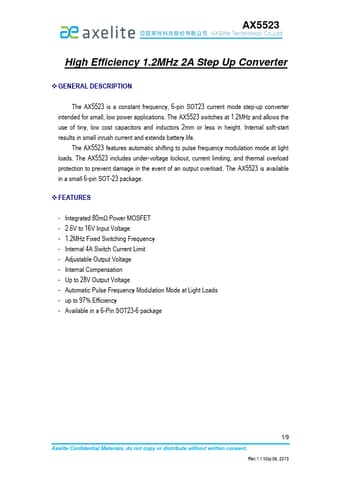

Preview of AX5523 PDF

Datasheet Details

Part number:

AX5523

Manufacturer:

AXElite

File Size:

435.77 KB

Description:

High efficiency 1.2mhz 2a step up converter.
