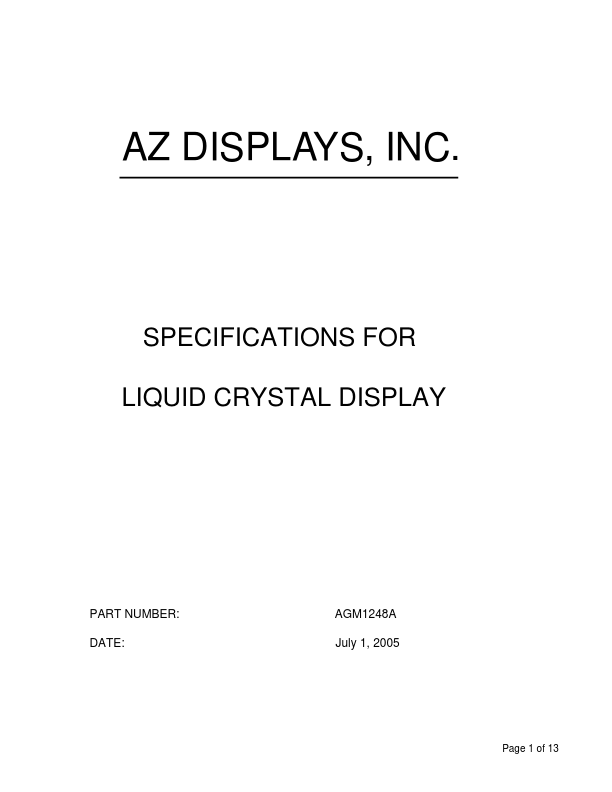

AGM1248A, LIQUID CRYSTAL DISPLAY

Instruction Code Display ON / OFF Turn ON/OFF LCD panel 0 0 1 0 1 0 1 1 1 DON When DON=0: display OFF When DON=1: display ON Initial display line 0 0 0 1 ST5 ST4 ST3 ST2 ST1 ST0 Specify DDRAM line for COM0 Set Page address 0 0 1 0 1 1 P3 P2 P1 P0 Set page address Set column address MSB 0

AGM1248A Features

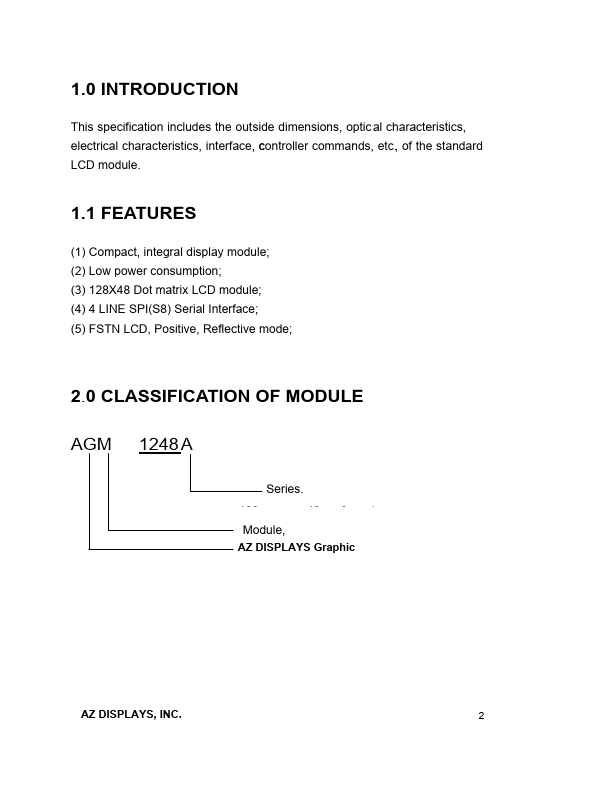

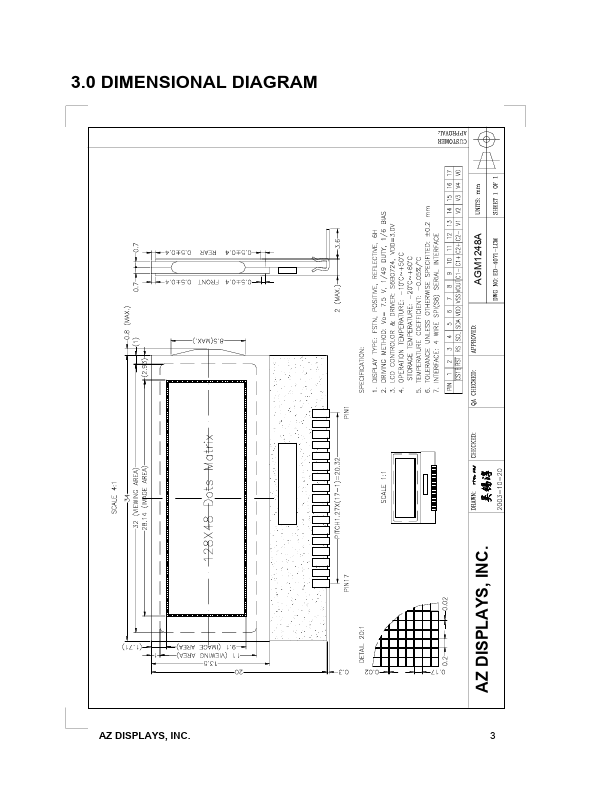

* (1) Compact, integral display module; (2) Low power consumption; (3) 128X48 Dot matrix LCD module; (4) 4 LINE SPI(S8) Serial Interface; (5) FSTN LCD, Positive, Reflective mode; 2.0 CLASSIFICATION OF MODULE AGM 1248 A Series. 128 x 48 format Module, AZ DISPLAYS Graphic AZ DISPLAYS, INC. 2 3.0 DIME
