ACT4070 Wide Input 3A Step Down Converter

ACT4070 Description

www.DataSheet4U.com ACT4070 Rev 0, 12/2006 Wide Input 3A Step Down Converter .
The ACT4070 is a current-mode step-down DC/DC converter that generates up to 3A output current at 400kHz switching frequency.

ACT4070 Features

*  3A Output Current
*  Up to 95% Efficiency
*  4.5V to 30V Input Range
*  6µA Shutdown Supply Current
*  400kHz Switching Frequency
*  Adjustable Output Voltage
*  Cycle-by-Cycle Current Limit Protection
*  Thermal Shutdown Protection
*  Internal Soft Start Funct

ACT4070 Applications

*  TFT LCD Monitors or Televisions and HDTV
*  Portable DVD Players
*  Car-Powered or Battery-Powered Equipment
*  Set-Top Boxes
*  Telecom Power Supplies

📥 Download Datasheet

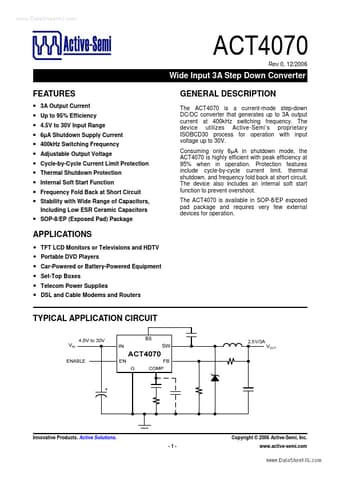

Preview of ACT4070 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT4070
Manufacturer
Active-Semi
File Size
627.58 KB
Datasheet
ACT4070_ETC.pdf
Description
Wide Input 3A Step Down Converter
