ACT8310 - (ACT8309 - ACT8311) PWM Step-Down DC/DCs

Product Overview

Active-Semi

Datasheet Details

Part number	ACT8310
Manufacturer	Active-Semi
File Size	355.38 KB
Description	(ACT8309 - ACT8311) PWM Step-Down DC/DCs
Datasheet	ACT8310 Datasheet
Note	This datasheet PDF includes multiple part numbers: ACT8310, ACT8309_Active. Please refer to the document for exact specifications by model.

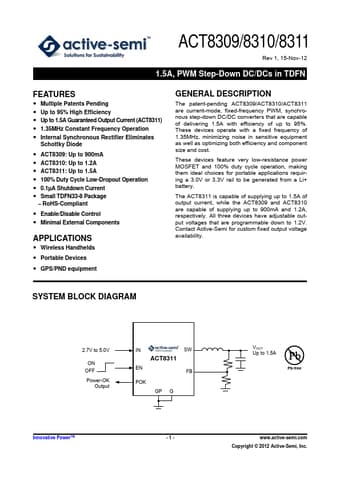

Additional preview pages of the ACT8310 datasheet.

Product details

Description

The patent-pending ACT8309/ACT8310/ACT8311 are current-mode, fixed-frequency PWM, synchronous step-down DC/DC converters that are capable of delivering 1.5A with efficiency of up to 95%.

Features

ACT8309/8310/8311 Rev PrA, 24-Jan-08 Advanced Product Information.
All Information Subject to Change 1.5A, PWM Step-Down DC/DCs in TDFN.
