ACT8500, Analog Multiplexer

Standard Products Datasheet ACT8500 64-Channel Analog Multiplexer Module Radiation Tolerant & ESD Protected www.aeroflex.com/mux May 5, 2014 FEA.

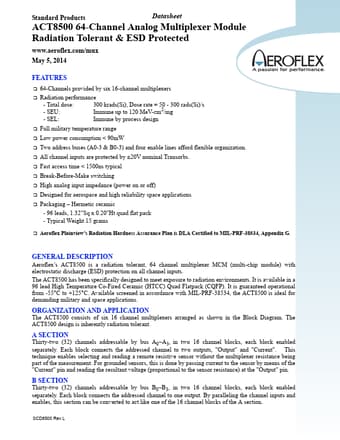

datasheet Preview Page 1 from Datasheet4u.com

ACT8500_AeroflexCircuitTechnology.pdf

ACT8500 Datasheet Preview — Preview of ACT8500 PDF

Datasheet Details

Part number:

ACT8500

Manufacturer:

Aeroflex Circuit Technology

File Size:

252.68 KB

Description:

Analog Multiplexer

Features

*  64-Channels provided by six 16-channel multiplexers  Radiation performance - Total dose: - SEU: 300 krads(Si), Dose rate = 50 - 300 rads(Si)/s Immune up to 120 MeV-cm2/mg - SEL: Immune by process design  Full military temperature range  Low power consumption < 90mW  Two address buses

Applications

*  Packaging
* Hermetic ceramic - 96 leads, 1.32"Sq x 0.20"Ht quad flat pack - Typical Weight 15 grams  Aeroflex Plainview’s Radiation Hardness Assurance Plan is DLA Certified to MIL-PRF-38534, Appendi
