ACT8505 - Analog Multiplexer

ACT8505 Description

Standard Products ACT8505 64-Channel Analog Multiplexer Module Radiation Tolerant With MUX Output Monitor Function www.aeroflex.com/RADHARD September .
Aeroflex’s ACT8505 is a radiation tolerant, 64 channel multiplexer MCM (multi-chip module) with ESD protection for use in space applications.

ACT8505 Features

* ❑ Radiation Performance - Radiation 300K(Si) Total Dose - No Latch-Up or SEE to 120MeV/cm2/mg ❑ Full Military Temperature Range ❑ Low Power Consumption < 75mW, Typically 50mW ❑ 64 Channels Provided by Four (4) HS-1840RH Multiplexers ❑ Address Bus (A0-3), and Four Enable lines afford flexible organiz

ACT8505 Applications

* ❑ Same Form / Fit / Function as ACT8504 but no input Transorbs ❑ Packaging
* Hermetic Ceramic Quad Flat Pack - 96 Leads, 1.32"Sq x .20"Ht Quad Flat Pack - Typical Weight 15 grams ❑ DSCC SMD 5962-0520902
* NOTE: Aeroflex Plainview does not currently have a DSCC Certified Radiation Hardened

📥 Download Datasheet

Preview of ACT8505 PDF

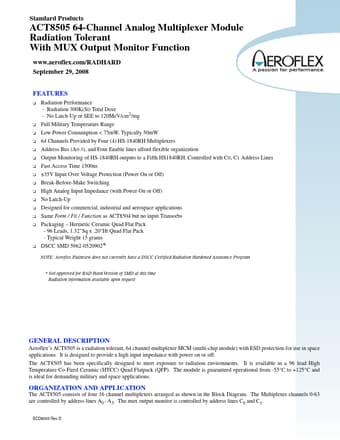

datasheet Preview Page 2 datasheet Preview Page 3
