ACT8502 - Analog Multiplexer

ACT8502 Description

Standard Products Datasheet ACT8502 48-Channel Analog Multiplexer Module Radiation Tolerant & ESD Protected www.aeroflex.com/mux May 5, 2014 FEA.

ACT8502 Features

*  48 channels provided by six 16-channel multiplexers  Radiation performance - Total dose: - SEU: 300 krads(Si), Dose rate = 50 - 300 rads(Si)/s Immune up to 120 MeV-cm2/mg - SEL: Immune by process design  Full military temperature range  Low power consumption < 90mW  One address bus (A0

ACT8502 Applications

*  Packaging
* Hermetic ceramic - 96 leads, 1.32"Sq x 0.20"Ht quad flat pack - Typical Weight 15 grams  Aeroflex Plainview’s Radiation Hardness Assurance Plan is DLA Certified to MIL-PRF-38534, Appendix G. GENERAL DESCR

📥 Download Datasheet

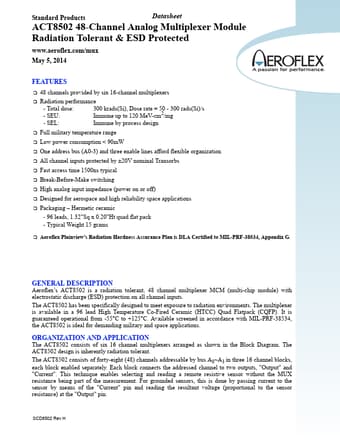

Preview of ACT8502 PDF
datasheet Preview Page 2 datasheet Preview Page 3
