ACT8311NHADJ-T - PWM Step-Down DC/DC converter

Product Overview

Qorvo

Datasheet Details

Part number	ACT8311NHADJ-T
Manufacturer	Qorvo
File Size	678.04 KB
Description	PWM Step-Down DC/DC converter
Datasheet	ACT8311NHADJ-T Datasheet
Note	This datasheet PDF includes multiple part numbers: ACT8311NHADJ-T, ACT8310. Please refer to the document for exact specifications by model.

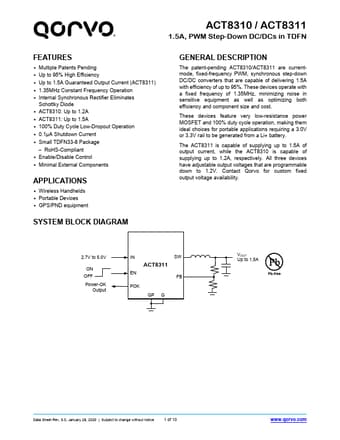

Additional preview pages of the ACT8311NHADJ-T datasheet.

Product details

Description

The patent-pending ACT8310/ACT8311 are currentmode, fixed-frequency PWM, synchronous step-down DC/DC converters that are capable of delivering 1.5A with efficiency of up to 95%.

Features

Multiple Patents Pending.
Up to 95% High Efficiency.
Up to 1.5A Guaranteed Output Current (ACT8311).
1.35MHz Constant Frequency Operation.
Internal Synchronous Rectifier Eliminates Schottky Diode.
ACT8310: Up to 1.2A.
ACT8311: Up to 1.5A.
100% Duty Cycle Low-Dropout Operation.
0.1µA Shutdown Current.
Small TDFN33-8 Package  RoHS-Compliant.
Enable/Disable Control.
Minimal External Compone.
