ACT8332, ACT8332_Active Three Channel Integrated Power Management IC

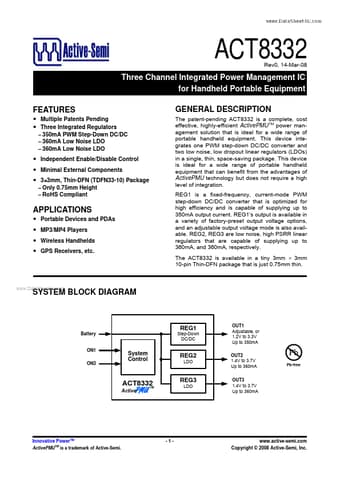

📥 Download Datasheet  Datasheet Preview Page 1

Description

ACT8332 Rev0, 14-Mar-08 Three Channel Integrated Power Management IC for Handheld Portable Equipment .
The patent-pending ACT8332 is a complete, cost effective, highly-efficient ActivePMUTM power management solution that is ideal for a wide range of por.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT8332, ACT8332_Active. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ACT8332, ACT8332_Active
Manufacturer
Active-Semi
File Size
378.17 KB
Datasheet
ACT8332_Active-Semi.pdf
Description
Three Channel Integrated Power Management IC
Note
This datasheet PDF includes multiple part numbers: ACT8332, ACT8332_Active.
Please refer to the document for exact specifications by model.

Features

* Multiple Patents Pending
* Three Integrated Regulators
* 350mA PWM Step-Down DC/DC
* 360mA Low Noise LDO

Applications

* Portable Devices and PDAs
* MP3/MP4 Players
* Wireless Handhelds
* GPS Receivers, etc. www. DataSheet4U. com SYSTEM BLOCK DIAGRAM REG1 Battery Step-Down DC/DC OUT1 Adjustable, or 1.2V to 3.3V Up to 350mA OUT2 1.4V to 3.7V Up to 360mA OUT3 1.4V to 3.7V Up to 360mA
