AAT3239

500mA MicroPower LDO

AAT3239 Datasheet (309.38 KB)

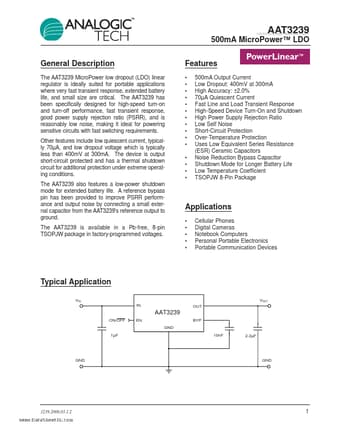

Preview of AAT3239 PDF Datasheet

Datasheet Details

Part number:

AAT3239

Manufacturer:

Advanced Analogic Technologies

File Size:

309.38 KB

Description:

500ma micropower ldo

AAT3239 Features

* include low quiescent current, typically 70µA, and low dropout voltage which is typically less than 400mV at 300mA. The device is output short-circuit protected and has a thermal shutdown circuit for additional protection under extreme operating conditions. The AAT3239 also features a low-power shut

AAT3239 General Description

The AAT3239 MicroPower low dropout (LDO) linear regulator is ideally suited for portable applications where very fast transient response, extended battery life, and small size are critical. The AAT3239 has been specifically designed for high-speed turn-on and turn-off performance, fast transient res.
