ACT9PSV-4 Datasheet - Advanced Crystal Technology

ACT9PSV-4 4 & 6 pad miniature surface mount Voltage Controlled Crystal Oscillators

Tel : Fax : email : 0044 (0)118 979 1238 0044 (0)118 979 1283 info@actcrystals.com ACT9PSV-4/6 The ACT9PSV-4/6 is a family of 4 & 6 pad miniature surface mount Voltage Controlled Crystal Oscillators (VCXO) housed in a 14 x 9.8 mm plastic package. Only 4.7mm high it is ideal for high density automatic assembly printed circuit boards. These devices can be tuned between ±50ppm & ±200ppm from the nominal frequency by varying the voltage on pin 1. Applications include Networking, Telecomms, PLL cir.

ACT9PSV-4_AdvancedCrystalTechnology.pdf

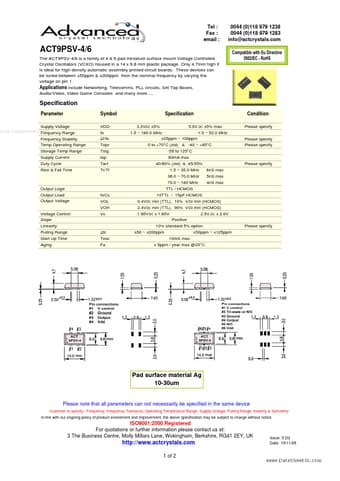

ACT9PSV-4 Datasheet Preview — Preview of ACT9PSV-4 PDF

Datasheet Details

Part number:

ACT9PSV-4

Manufacturer:

Advanced Crystal Technology

File Size:

139.67 KB

Description:

4 & 6 pad miniature surface mount voltage controlled crystal oscillators.
