ACT9SVH-6 Datasheet - Advanced Crystal Technology

ACT9SVH-6 6-pad miniature SMD Voltage Controlled Crystal Oscillator

Tel : Fax : email : 0044 (0)118 979 1238 0044 (0)118 979 1283 info@actcrystals.com ACT9SVH-6 HCMOS The ACT 9SVH-6 is a 6-pad miniature SMD Voltage Controlled Crystal Oscillator (VCXO) housed in a 7 x 5 mm ceramic package with a metal lid. Only 1.7mm high it is ideal for high density, automatic assembly, printed circuit boards. The device may be "pulled" by ±100ppm from the nominal frequency by varying the voltage on pad 1. Applications include Networking, Telecomms, Consumer, Wireless, Audio V.

ACT9SVH-6_AdvancedCrystalTechnology.pdf

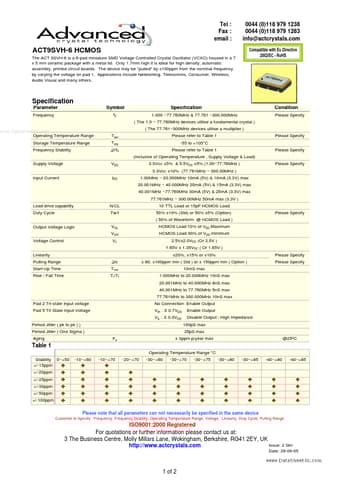

ACT9SVH-6 Datasheet Preview — Preview of ACT9SVH-6 PDF

Datasheet Details

Part number:

ACT9SVH-6

Manufacturer:

Advanced Crystal Technology

File Size:

220.87 KB

Description:

6-pad miniature smd voltage controlled crystal oscillator.
