ACT9SKV-6 Datasheet - Advanced Crystal Technology

ACT9SKV-6 LVPECL or LVDS Voltage Controlled Oscillator

Tel : Fax : email : 0044 (0)118 979 1238 0044 (0)118 979 1283 info@actcrystals.com ACT9SKV-6 LVPECL or LVDS Voltage Controlled Oscillator The ACT 9SKV-6 is a 6-pad miniature surface mount Voltage Controlled Crystal Oscillators (VCXO) housed in a 7 x 5 mm ceramic package with a metal lid. Only 1.7mm high it is ideal for high density, automatic assembly, printed circuit boards. The device may be "pulled" by ±80ppm from the nominal frequency by varying the voltage on pad 1. Applications include N.

ACT9SKV-6_AdvancedCrystalTechnology.pdf

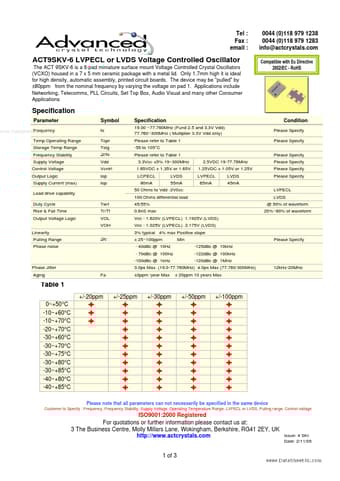

ACT9SKV-6 Datasheet Preview — Preview of ACT9SKV-6 PDF

Datasheet Details

Part number:

ACT9SKV-6

Manufacturer:

Advanced Crystal Technology

File Size:

164.99 KB

Description:

Lvpecl or lvds voltage controlled oscillator.
