Am186ES 16-Bit Embedded Microcontrollers

The Am186™ES/ESLV and Am188™ES/ESLV microcontrollers are an ideal upgrade for 80C186/188 and 80L186/188 microcontroller designs requiring 80C186/188 and 80L186/188 compatibility, increased performance, serial communications, and a direct bus interface. The Am186ES/ESLV and Am188ES/ESLV microcontroll.

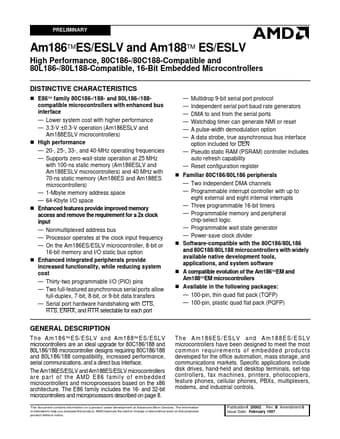

PRELIMINARY Am186TMES/ESLV and Am188TM ES/ESLV High Performance, 80C186-/80C188-Compatible and 80L186-/80L188-Compatible, 16-Bit Embedded Microcontrollers DISTINCTIVE CHARACTERISTICS n E86™ family 80C186-/188- and 80L186-/188compatible microcontrollers with enhanced bus interface Lower system cost with higher performance 3.3-V ±0.3-V operation (Am186ESLV and Am188ESLV microcontrollers) n High performance 20-, 25-, 33-, and 40-MHz operating frequencies Sup.

Am186ES Features

* 10 Comparing the ES to the 80C186 11 Comparing the ES to the EM 11 TQFP Connection Diagrams and Pinouts 13 PQFP Connection Diagrams and Pinouts
