AM1802 - ARM Microprocessor

Datasheet Summary

Description

The AM1802 ARM microprocessor is a low-power applications processor based on ARM926EJ-S.

Features

  • 1.
  • 300-MHz ARM926EJ-S™ RISC MPU.
  • ARM926EJ-S Core.
  • 32-Bit and 16-Bit ( Thumb®) Instructions.
  • Single-Cycle MAC.
  • ARM Jazelle® Technology.
  • Embedded ICE-RT™ for Real-Time Debug.
  • ARM9™ Memory Architecture.
  • 16KB of Instruction Cache.
  • 16KB of Data Cache.
  • 8KB of RAM (Vector Table).
  • 64KB of ROM.
  • Enhanced Direct Memory Access Controller 3 (EDMA3):.
  • 2 Channel Controllers.
  • 3 Transfer.

📥 Download Datasheet

Datasheet preview – AM1802

Datasheet Details

Part number AM1802
Manufacturer Texas Instruments
File Size 1.49 MB
Description ARM Microprocessor
Datasheet download datasheet AM1802 Datasheet
Additional preview pages of the AM1802 datasheet.

📁 Similar Datasheet

  • AM180N10-04M5P - N-Channel MOSFET (Analog Power)
  • AM181 - Monolithic N-Channel Junction FET Switches (National Semiconductor)
  • AM182 - Monolithic N-Channel Junction FET Switches (National Semiconductor)
  • AM184 - Monolithic N-Channel Junction FET Switches (National Semiconductor)
  • AM185 - Monolithic N-Channel Junction FET Switches (National Semiconductor)
  • AM186ED - 16-Bit Embedded Microcontrollers (AMD)
  • AM186EDLV - 16-Bit Embedded Microcontrollers (AMD)
  • AM186EM - 16-Bit Embedded Microcontrollers (AMD)
  • AM186EMLV - 16-Bit Embedded Microcontrollers (AMD)
  • AM186ER - 16-Bit Embedded Microcontrollers (Advanced Micro Devices)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

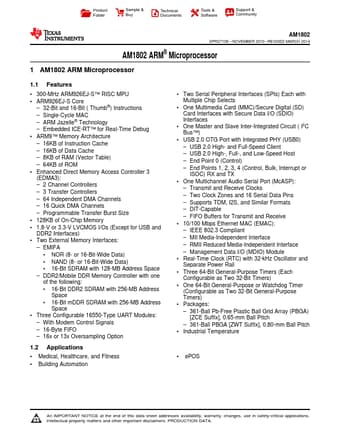

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community AM1802 SPRS710E – NOVEMBER 2010 – REVISED MARCH 2014 AM1802 ARM® Microprocessor 1 AM1802 ARM Microprocessor 1.1 Features 1 • 300-MHz ARM926EJ-S™ RISC MPU • ARM926EJ-S Core – 32-Bit and 16-Bit ( Thumb®) Instructions – Single-Cycle MAC – ARM Jazelle® Technology – Embedded ICE-RT™ for Real-Time Debug • ARM9™ Memory Architecture – 16KB of Instruction Cache – 16KB of Data Cache – 8KB of RAM (Vector Table) – 64KB of ROM • Enhanced Direct Memory Access Controller 3 (EDMA3): – 2 Channel Controllers – 3 Transfer Controllers – 64 Independent DMA Channels – 16 Quick DMA Channels – Programmable Transfer Burst Size • 128KB of On-Chip Memory • 1.8-V or 3.
