AM1806

ARM Microprocessor

AM1806 Features

* 1

* 375- and 456-MHz ARM926EJ-S™ RISC MPU

* Enhanced Direct Memory Access Controller 3 (EDMA3):

* 2 Channel Controllers

* 3 Transfer Controllers

* 64 Independent DMA Channels

* 16 Quick DMA Channels

* Programmable Transfer Burst Size

AM1806 General Description

The AM1806 ARM Microprocessor is a low-power applications processor based on ARM926EJ-S. The device enables original-equipment manufacturers (OEMs) and original-design manufacturers (ODMs) to quickly bring to market devices featuring robust operat.

AM1806 Datasheet (1.97 MB)

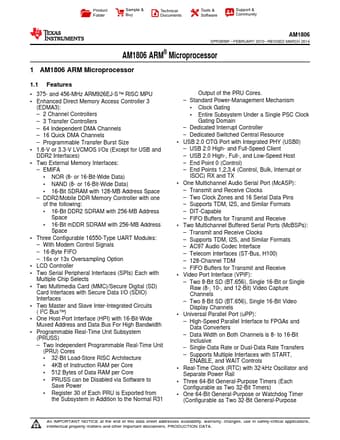

Preview of AM1806 PDF

Datasheet Details

Part number:

AM1806

Manufacturer:

Texas Instruments ↗

File Size:

1.97 MB

Description:

Arm microprocessor.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community AM1806 SPRS658F

* FEBRUARY 2010

* REVISED MA.
