AM186EDLV Datasheet - AMD

AM186EDLV 16-Bit Embedded Microcontrollers

The Am186TMED/EDLV microcontrollers are part of the AMD E86TM family of embedded microcontrollers and microprocessors based on the x86 architecture. The Am186ED/EDLV microcontrollers are the ideal upgrade for 80C186/188 designs requiring 80C186/188 compatibility, increased performance, serial commu.

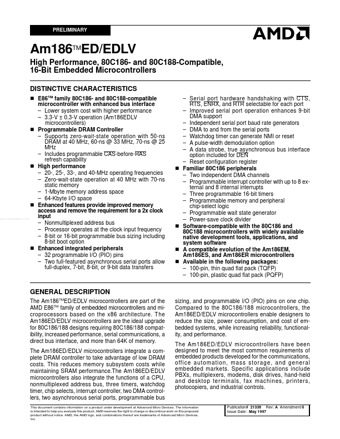

PRELIMINARY Am186TMED/EDLV High Performance, 80C186- and 80C188-Compatible, 16-Bit Embedded Microcontrollers DISTINCTIVE CHARACTERISTICS n E86TM family 80C186- and 80C188-compatible microcontroller with enhanced bus interface Lower system cost with higher performance 3.3-V ± 0.3-V operation (Am186EDLV microcontrollers) n Programmable DRAM Controller Supports zero-wait-state operation with 50-ns DRAM at 40 MHz, 60-ns @ 33 MHz, 70-ns @ 25 MHz Includes progr.

AM186EDLV Features

* 10 Application Considerations 11 COMPARING THE AM186ED/EDLV TO THE AM186ES/ESLV MICROCONTROLLERS 12 Integrated DRAM Controller 12 Enhanced Refresh Control Unit 13 Option to Overlap DRAM with PCS 13 Additional Serial Port Mode for DMA Support of 9-bit Protocols 13 Option to Boot from 8- or 16-b

AM186EDLV Datasheet (1.04 MB)
