AM1808 - ARM Microprocessor

Datasheet Summary

Features

  • 1.
  • 375- and 456-MHz ARM926EJ-S™ RISC MPU.
  • ARM926EJ-S Core.
  • 32-Bit and 16-Bit ( Thumb®) Instructions.
  • Single-Cycle MAC.
  • ARM Jazelle® Technology.
  • Embedded ICE-RT™ for Real-Time Debug.
  • ARM9™ Memory Architecture.
  • 16KB of Instruction Cache.
  • 16KB of Data Cache.
  • 8KB of RAM (Vector Table).
  • 64KB of ROM.
  • Enhanced Direct Memory Access Controller 3 (EDMA3):.
  • 2 Channel Controllers.
  • 3.

📥 Download Datasheet

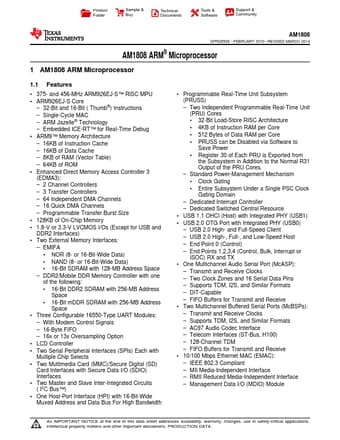

Datasheet preview – AM1808

Datasheet Details

Part number AM1808
Manufacturer Texas Instruments
File Size 2.09 MB
Description ARM Microprocessor
Datasheet download datasheet AM1808 Datasheet
Additional preview pages of the AM1808 datasheet.
