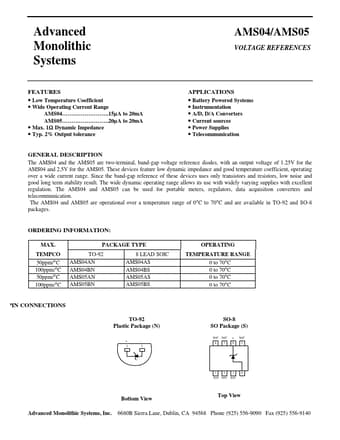

AMS04 Datasheet, References, Advanced Monolithic Systems

AMS04 Features

• References
• Low Temperature Coefficient
• Wide Operating Current Range AMS04…………………….15µ A to 20mA AMS05…………………….20µ A to 20mA
• Max. 1Ω Dynamic Impedance
• Typ. 2

PDF File Details

Part number:

AMS04

Manufacturer:

Advanced Monolithic Systems

File Size:

40.98kb

Download:

📄 Datasheet

Description:

Voltage references. The AMS04 and the AMS05 are two-terminal, band-gap voltage reference diodes, with an output voltage of 1.25V for the AMS04 and 2.5V f

AMS04 Application

• Applications
• Battery Powered Systems
• Instrumentation
• A/D, D/A Converters
• Current sources
• Power Sup
