AMS1004-2.5 Datasheet, Reference, Advanced Monolithic Systems

AMS1004-2.5 Features

• Reference
• ±20 mV (±0.3%) max. initial tolerance (A grade)
• Operating Current 20µA to 20mA
• Low Voltage Reference 2.5V
• Max. 0.6Ω Dynamic Impedance (A grade) <

PDF File Details

Part number:

AMS1004-2.5

Manufacturer:

Advanced Monolithic Systems

File Size:

67.92kb

Download:

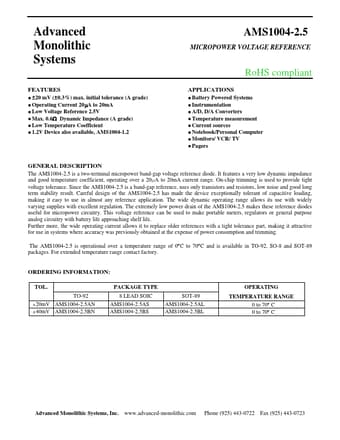

📄 Datasheet

Description:

Micropower voltage reference. The AMS1004-2.5 is a two-terminal micropower band-gap voltage reference diode. It features a very low dynamic impedance and good temp

AMS1004-2.5 Application

• Applications
• Battery Powered Systems
• Instrumentation
• A/D, D/A Converters
• Temperature measurement
• C

TAGS

AMS1004-2.5

Advanced Monolithic Systems
