AMS1082

10A LOW DROPOUT VOLTAGE REGULATORS

AMS1082 Features

* Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V

* Output Current of 10A

* Operates Down to 1V Dropout

* Line Regulation: 0.015%

* Load Regulation: 0.1%

* TO-220 and TO-263 packages available AMS1082 10A LOW DROPOUT VO

AMS1082 General Description

The AMS1082 series of adjustable and fixed voltage regulators are designed to provide 10A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming.

AMS1082 Datasheet (88.57 KB)

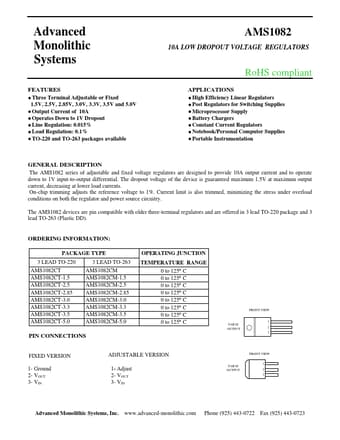

Preview of AMS1082 PDF

Datasheet Details

Part number:

AMS1082

Manufacturer:

Advanced Monolithic Systems

File Size:

88.57 KB

Description:

10a low dropout voltage regulators.
