AMS1083

8A LOW DROPOUT VOLTAGE REGULATOR

AMS1083 Features

* Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V

* Output Current of 8A

* Operates Down to 1V Dropout

* Line Regulation: 0.015%

* Load Regulation: 0.1%

* TO-220 and TO-263 packages available AMS1083 8A LOW DROPOUT VOLT

AMS1083 General Description

The The AMS1083 series of adjustable and fixed voltage regulators are designed to provide 8A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimm.

AMS1083 Datasheet (71.58 KB)

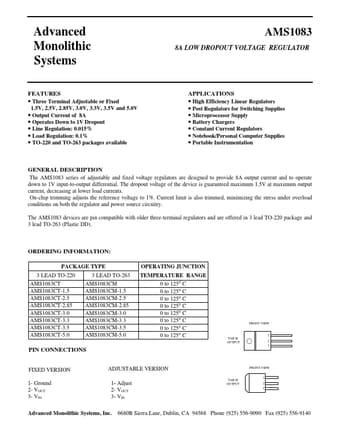

Preview of AMS1083 PDF

Datasheet Details

Part number:

AMS1083

Manufacturer:

Advanced Monolithic Systems

File Size:

71.58 KB

Description:

8a low dropout voltage regulator.
