AMS1084

5A LDO VOLTAGE REGULATOR

AMS1084 Features

* Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V

* Output Current of 5A

* Operates Down to 1V Dropout

* Line Regulation: 0.015%

* Load Regulation: 0.1%

* TO-220, TO-263 and TO-252 packages available AMS1084 5A LOW DROP

AMS1084 General Description

TThhee AMS1084 series of adjustable and fixed voltage regulators are designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimmi.

AMS1084 Datasheet (127.75 KB)

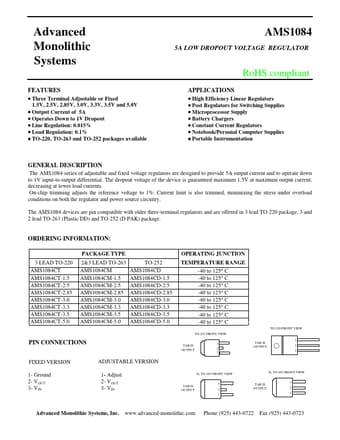

Preview of AMS1084 PDF

Datasheet Details

Part number:

AMS1084

Manufacturer:

Advanced Monolithic Systems

File Size:

127.75 KB

Description:

5a ldo voltage regulator.
