AMS1004-1.2 Datasheet, Reference, Advanced Monolithic Systems

AMS1004-1.2 Features

  • Reference
  • ±4 mV (±0.3%) max. initial tolerance (A grade)
  • Operating Current 10µA to 20mA
  • Low Voltage Reference 1.235V
  • Max. 0.6Ω Dynamic Impedance (A grade)

PDF File Details

Part number:

AMS1004-1.2

Manufacturer:

Advanced Monolithic Systems

File Size:

71.42kb

Download:

📄 Datasheet

Description:

Micropower voltage reference. The AMS1004-1.2 is a two-terminal micropower band-gap voltage reference diode. It features a very low dynamic impedance and good temp

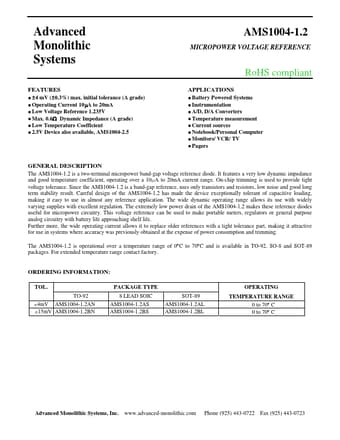

Datasheet Preview: AMS1004-1.2 📥 Download PDF (71.42kb)
Page 2 of AMS1004-1.2 Page 3 of AMS1004-1.2

AMS1004-1.2 Application

  • Applications
  • Battery Powered Systems
  • Instrumentation
  • A/D, D/A Converters
  • Temperature measurement
  • C
