AMS9491

1.235V VOLTAGE REFERENCE

Advanced Monolithic Systems

📥 Download PDF (70.58 KB)

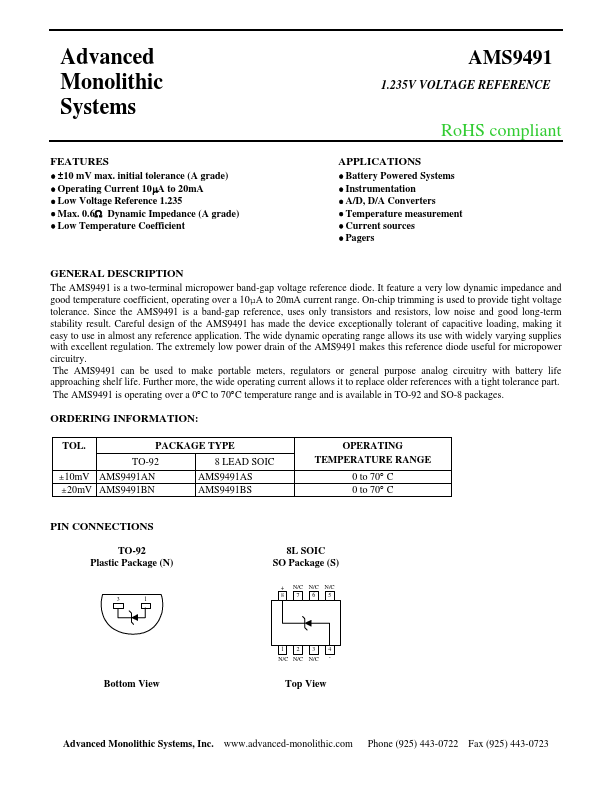

AMS9491 Datasheet Preview Page 1 — Preview of AMS9491 Datasheet

Datasheet Details

Part number:

AMS9491

Manufacturer:

Advanced Monolithic Systems

File Size:

70.58 KB

Download:

📄 Download AMS9491 Datasheet PDF

Description:

1.235v voltage reference.
Advanced Monolithic Systems FEATURES * ±10 mV max. initial tolerance (A grade) * Operating Current 1.
The AMS9491 is a two-terminal micropower band-gap voltage reference diode. It feature a very low dyn.

✔ AMS9491 Features

±10 mV max. initial tolerance (A grade)
Operating Current 10µA to 20mA
Low Voltage Reference 1.235
Max. 0.6Ω Dynamic Impedance (A grade)
Low Temperature Coeffic

✔ AMS9491 Application

Battery Powered Systems
Instrumentation
A/D, D/A Converters
Temperature measurement
Current source
