AP3N2R8AMT N-CHANNEL MOSFET WITH SCHOTTKY DIODE

AP3N2R8AMT Description

Advanced Power Electronics Corp.AP3N2R8AMT Halogen-Free Product N-CHANNEL MOSFET WITH SCHOTTKY DIODE ▼ 100% Rg & UIS Test D ▼ Simple Drive Requir.
AP3N2R8A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switchin.

AP3N2R8AMT Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 30V 2.8mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol . Parameter Rating

📥 Download Datasheet

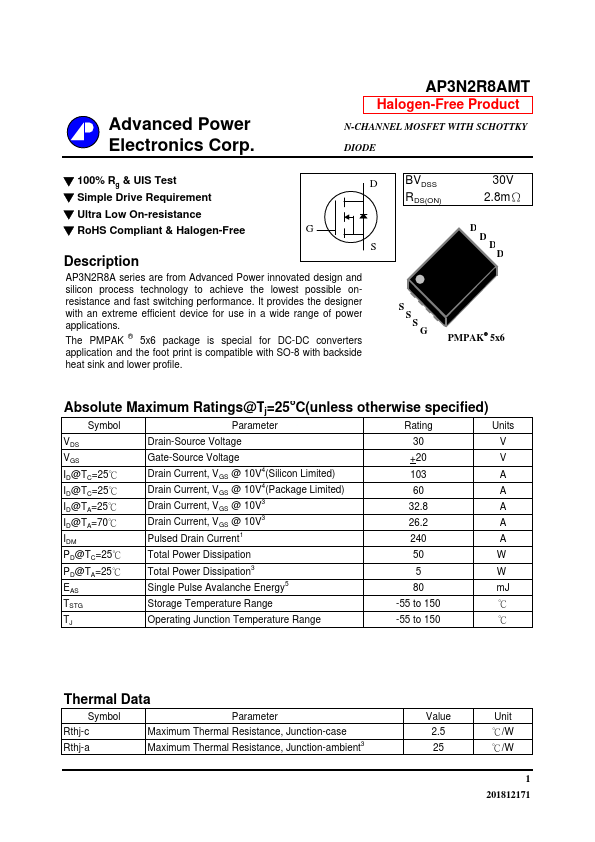

Preview of AP3N2R8AMT PDF

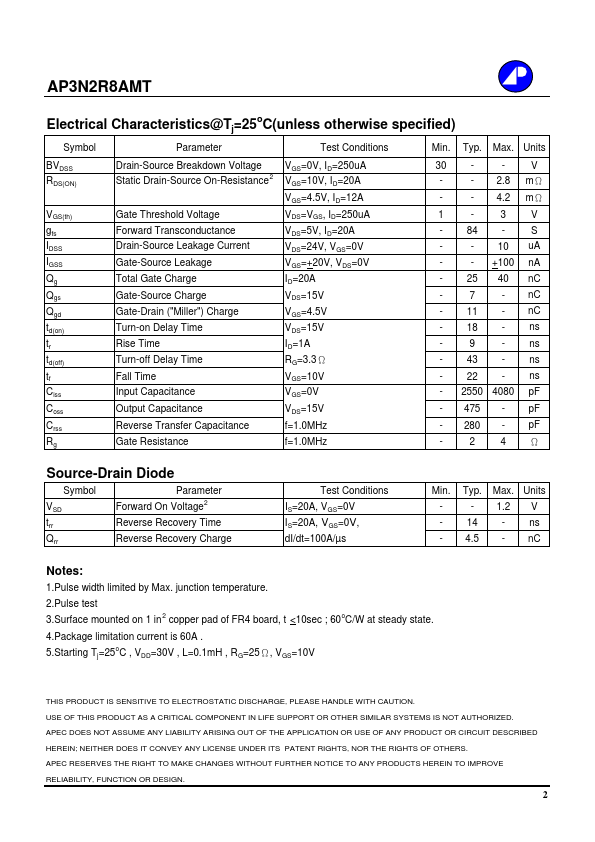

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3N2R8AMT
Manufacturer
Advanced Power Electronics
File Size
67.43 KB
Datasheet
AP3N2R8AMT-AdvancedPowerElectronics.pdf
Description
N-CHANNEL MOSFET WITH SCHOTTKY DIODE
