AP9992AGI-HF, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP9992AGI-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Fast Switching Characteristic ▼.
AP9992A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching.

AP9992AGI-HF_AdvancedPowerElectronics.pdf

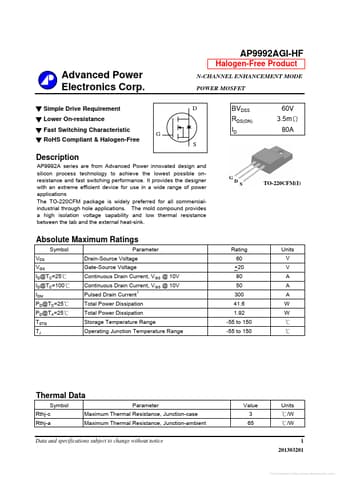

AP9992AGI-HF Datasheet Preview — Preview of AP9992AGI-HF PDF

Datasheet Details

Part number:

AP9992AGI-HF

Manufacturer:

Advanced Power Electronics

File Size:

116.99 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. G D S TO-220CFM(I) Absolute Maximum Ratings Symbol VDS VGS ID@TC=
